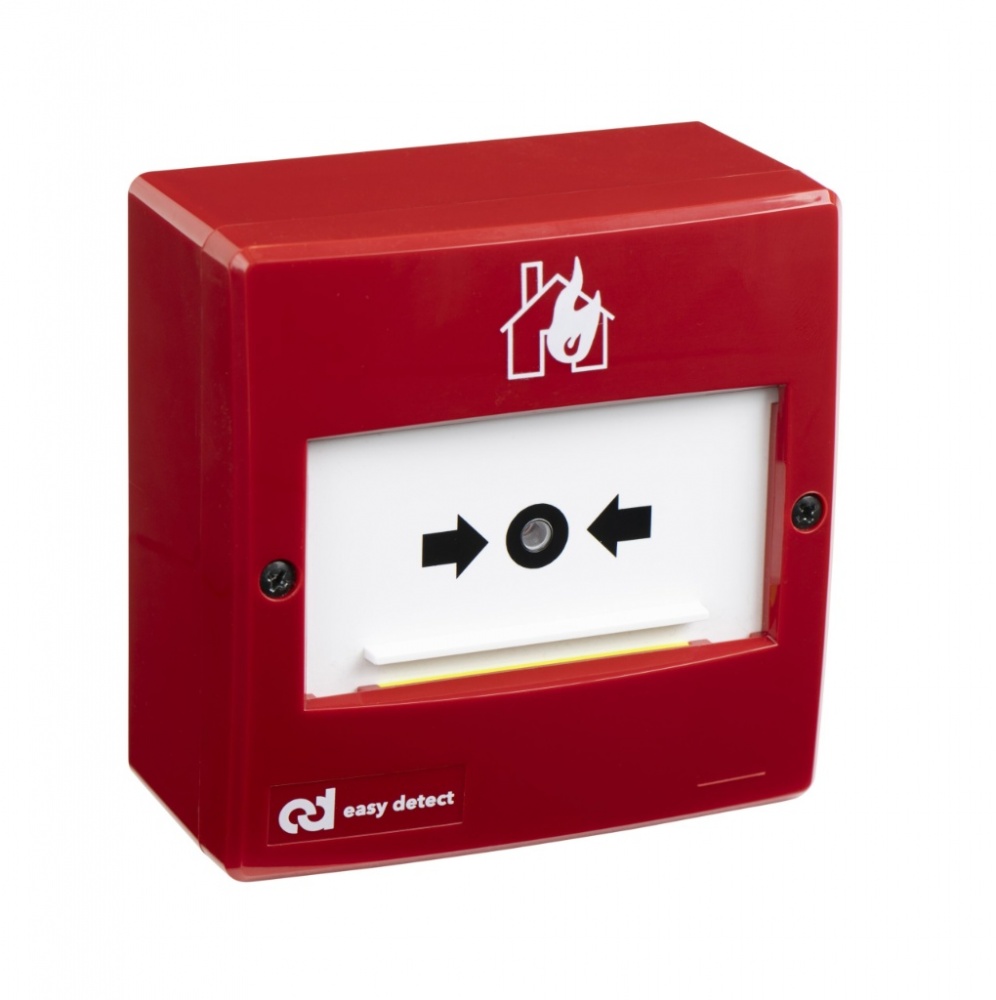

PAE-550-AI is a (🇪🇺) European brand, Easy-Detect, addressable manual call point for fire alarms with a built-in isolator. The device is manufactured from high-quality materials and is characterized by its durability and resilience.
⚙️ Technical Specifications:
- Each call point is under constant supervision, ensuring the transmission of an alarm signal in less than one second
- The system is resettable and operates with a special key (included in the set). This feature is ideal for locations with a risk of accidental or erroneous activation, as it can be quickly returned to its initial state
- Powered directly from the addressable loop and occupies one address in the system
- Operating voltage: 31-40V DC. ⚡ Power consumption in standby mode is <300 μA, and in alarm mode <4 mA.
- The device features a status indicator LED light
- Fully compliant with European EN 54-11 and EN 54-17 standards
Advantages:
- Can be surface-mounted (requires MSE-550 base)
- An optional transparent protective cover (TPE-550) can be used for additional security.
- Protection rating: IP33
Configuration is possible via the PGE-100 programming tool, Bluetooth application, or the auto-addressing function.
