CAE-408-H is a loop expansion unit manufactured by Easy-Detect, designed for CAE-408 addressable fire alarm panels. It allows the system to be expanded up to 16 loops, making it the ideal solution for large-scale projects where full system centralization is required.
⚙️ Technical Specifications:
- 8 additional addressable loops (Loop), supporting up to 2,000 devices in total (250 devices per loop)
Ensures stable operation on loops up to 3 km in length.
- Expansion is achieved using TLE-400 type 2-loop modules (max. 4 slots).

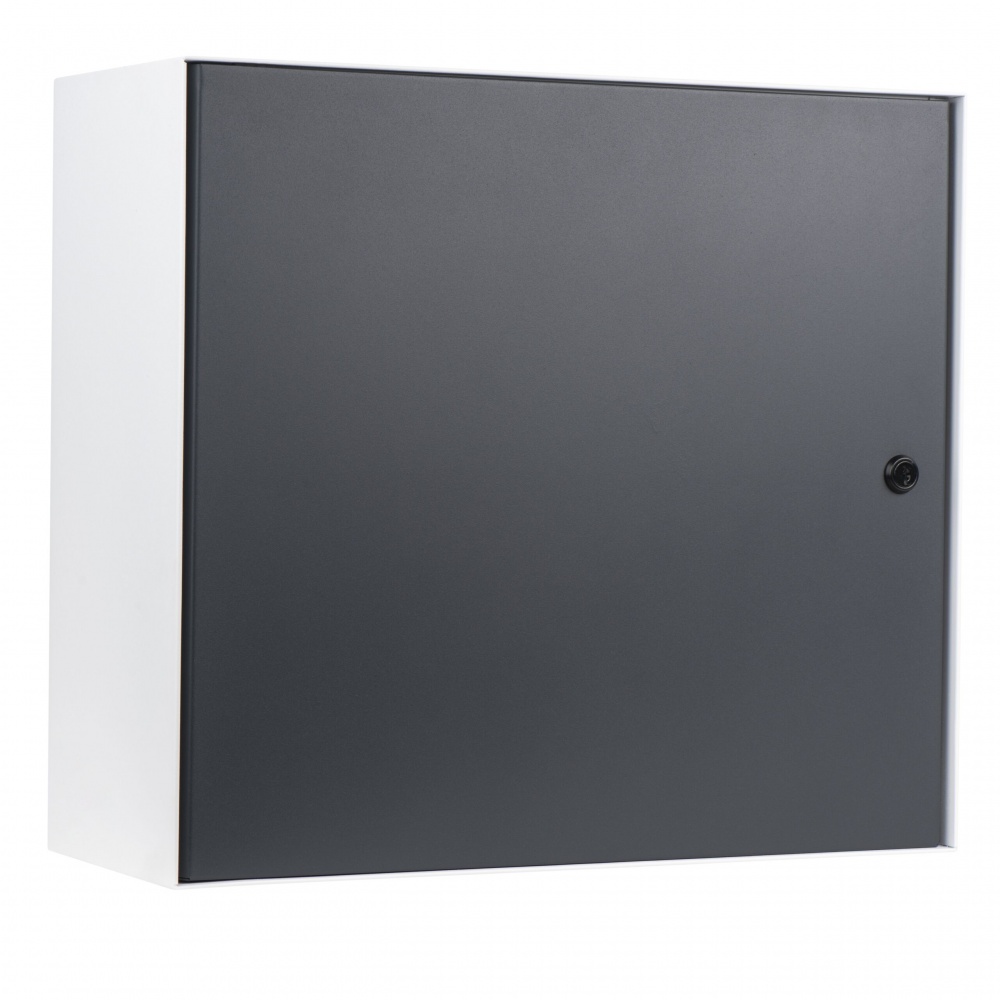

- The housing has a horizontal orientation and opens to the right, simplifying maintenance and operation.
- Includes a built-in power supply unit, and requires two 12V (12Ah or 24Ah) batteries for backup power
- Full compliance with EN 54-2 and EN 54-4 standards
Advantages:
- 🛡️ Robust metal casing with steel construction and epoxy finish ensures maximum durability.
- 📍 The device enables the management of large systems from a single central point.
