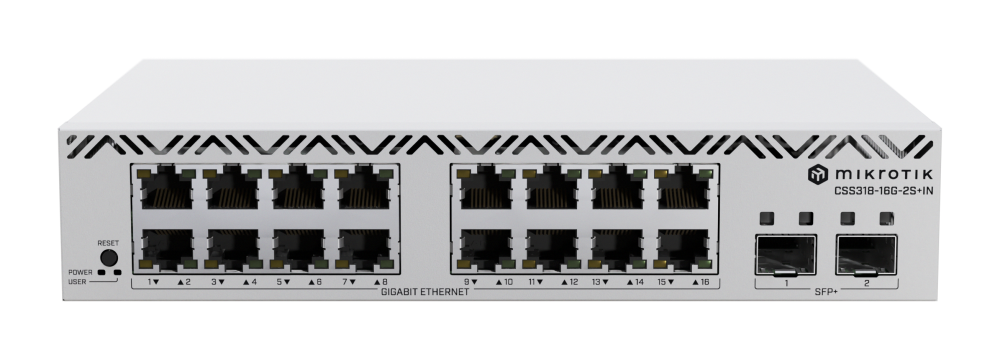

The CSS318-16G-2S+IN is a perfect fit for setups where 24 ports are too many and 8 ports just aren’t enough. Its compact 10-inch form factor and cost-effective design make it the ideal solution for small and medium-sized offices, home networks, or rackmount environments where space and efficiency are key.
With 16 Gigabit Ethernet ports and 2 SFP+ 10G uplink ports, you get all the connectivity you
need without unnecessary bulk. With its versatile mounting options, the CSS318-16G-2S+ can be
installed in 10-inch racks, standard 19-inch racks, or even side-by-side—fitting two switches in a
single 1U 19-inch space.
MAC FILTERING & VLANS
EASY TO STACK IN 1U RACK SPACE
CAN BE CONFIGURED FROM YOUR WEB BROWSER
PORT-TO-PORT FORWARDING
TRAFFIC MIRRORING
SILENT FANLESS PERFORMANCE
Technical Specifications
|
Switch Operating Layer:
|
Layer 2 |
|
Firmware/OS:
|
SwOS |
|
Management Interface:
|
Web-based GUI |
|
Number of 10/100/1000 Ethernet ports:
|
16 |
|
Optical (SFP/SFP+) Ports:
|
2x10G SFP+ |
|
Serial Port:
|
- |
|
Switching Capacity:
|
72 Gbps |
|
Forwarding Rate:
|
53.56 Mpps |
|
Mac Table Capacity:
|
16 K |
|
Cooling Type:
|
Passive Cooling |
|
Redundant Power Supply:
|
- |
|
Power Method:
|
AC 100-240 |
|
Form Factor:
|
Rack-Mount |
|
Power consumption: Max:
|
13 W |
|
Operating temperature:
|
-40 °C .. 70 °C |
