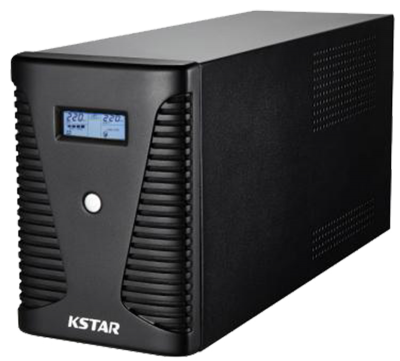

800VA/480W Line Interactive UPS
800VA/480W Line Interactive UPS
Model: KS-UA800
Manufacturer: KSTAR
Price
₾ 138.86

Product Description
 /
Documentation

Features
- AVR boost and buck
- Cold start function
- Smart RS-232/USB interface for power management
- Built-in self-diagnostic function
- Generator compatible
- LCD
- Fast charging capacity
- Auto charging at off mode
- Auto restart while AC is recovering

Technical Specifications

Capacity (VA/Watts): 800/480

Input:
Normal Input Voltage: 110/120 Vac or 220/230/240 Vac
Operating Voltage Range: 84-145 Vac / 162-290 Vac
Operating Frequency Range: 50/60 Hz (+/- 10%)

Output:
Output Voltage Range (Batt. Mode): Simulated Sinewave at normal voltage +/- 10%
Frequency Range (Batt. Mode): 50/60 Hz +/- 1Hz
Transfer Time: Typical 2-6 ms, 10ms max.

Battery:
Battery Type & Number: 12V / 9 Ah x 1
Typical Recharge Time: 6-8 Hours (To 90% capacity)

Protection:
Full protection: Overload and overcharge protection

Indicators:
LCD: AC Mode, Battery Mode. Load Level, Battery Level, Input Voltage, Output Voltage, Overload, Fault, Battery Low.

Alarm:
Battery Mode: Sounding every 10 seconds
Battery Low: Sounding every seconds
Overload: Sounding every 0.5 seconds
Battery Replacement Alarm: Sounding every 2 seconds
Fault: Continuously sounding

Managment:
USB & RS-232 port (Optional): Supports Windows* 2000/2003/Xp/Vista/2008/7 Linux;Unix;MAC

Environment:
Operating Temperature: 0-40*C
Humidity Range: 0-95% (Non-condensing)
Noise Level: 40dB (1 meter from surface)

Physical
Dimension, W x D x H (mm): 101 x 298 x 142
Net Weight (kg): 4.9

Standarts
Safety: IEC/EN62040 – 1; IEC/EN60950 – 1;
EMC: IEC/EN62040 – 2; IEC61000 – 4 – 2; IEC61000 – 4 – 3; IEC61000 – 4 – 4; IEC61000 – 4 – 5; IEC61000 – 4 – 5; IEC61000 – 4 – 6; IEC61000 – 4 – 8;
